Description

Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.

Ancor 311699 Attributes

• Type: 3/8 Inch Ring Terminal
• Gauge Wire: 16-14 Gauge
• Color: Silver End With Blue Boot
• Material: Copper
• Quantity: Pack Of 100

Ancor 311699 Features & Benefits

• Tinned For Corrosion Resistance
• Pure Copper For Maximum Current Flow
• Brazed Seam For Maximum Strength
• Heat Activated Adhesive Built Into The Sleeve Of The Heat Shrink Tubing
• Shrinks To Form A Water Tight Seal And Ultimate Vibration And Strain Relief
• No Supplier Warranty

Ancor 311699 Technical Bulletins

• 313938-9193.pdf

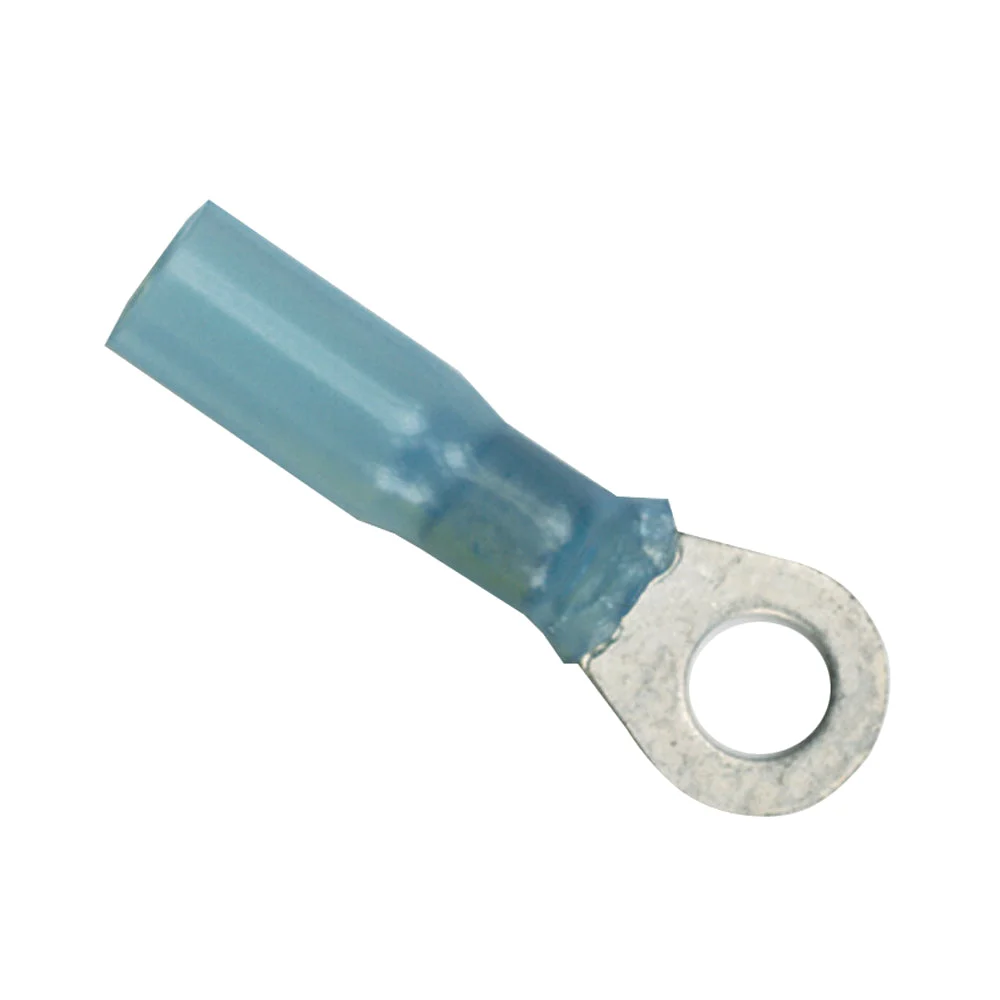

16-14 Gauge – 3/8″ Heat Shrink Ring Terminal – 100-Pack
Wire Range:16-14
Screw Size:3/8″
Quantity: 100
Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
• Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
• UL Listed and CSA Recognized
• Highest shrink ratio – shrinks to 1/3 original size
• Shrinks at 257° F/125° C
• Operating temperature range 40° C to 110° C
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief
• Tinned for corrosion resistance
• Pure copper for maximum current flow
• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

With tinned copper, it can maximize current flow and corrosion resistance. The shrink tube lined with adhesive shrinks to form a tight seal and ultimately eliminate vibration and stress.
SKU: NVN-47665
MPN: 311699
UPC: 091887313246
