Description

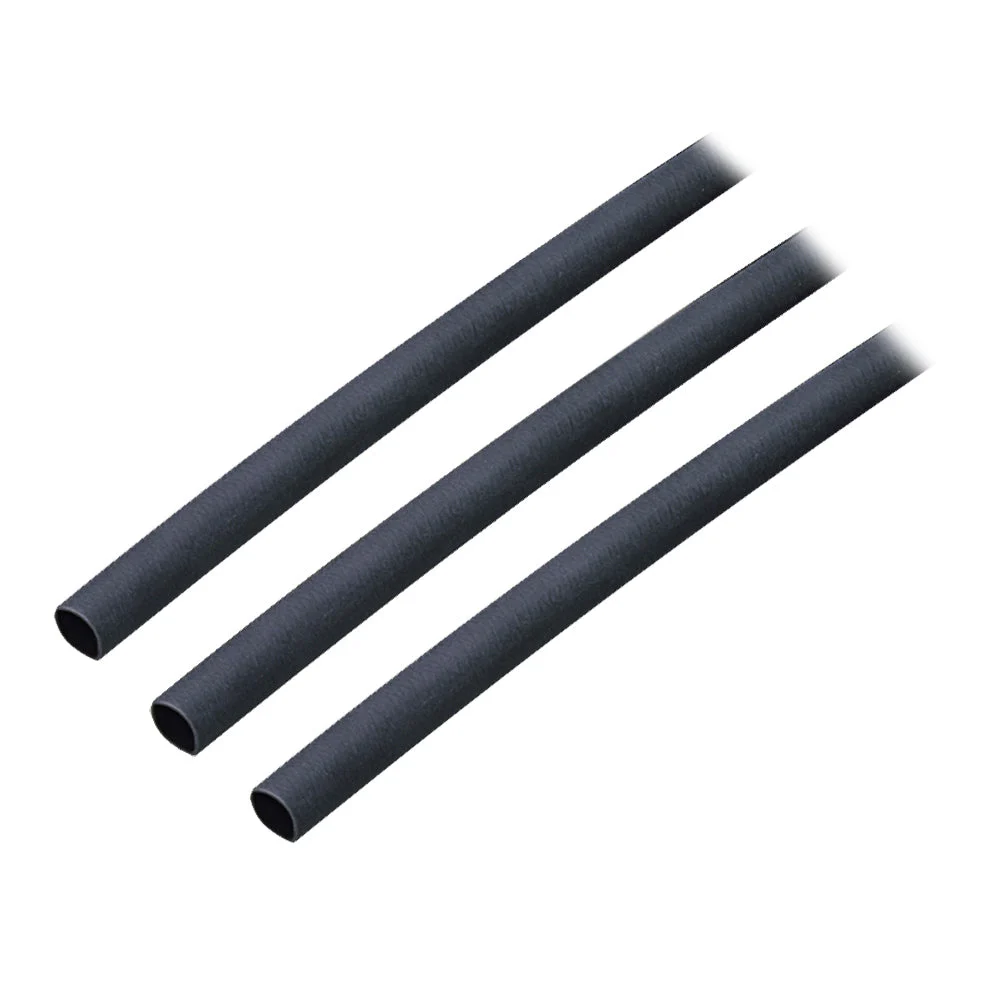

Package of 3 Black 3 Inch long sections with a 1/8 Inch diameter that shrinks to 1/32 Inch

Ancor 302103 Attributes

• Compatibility: 3/16 Inch Diameter
• Length: 3 Inch
• Color: Black
• Material: Polyolefin
• Quantity: Pack Of 3

Ancor 302103 Features & Benefits

• Cross Linked Polyolefin Tubing Is Much Stronger Than PVC Tubing And Will Not Burn Like PVC
• Heat Activated Adhesive Lining Provides Impervious Seal To Salt Water, Oil, Acids, And Sunlight As Well As Providing Strain Relief
• Highest Shrink Ratio – Shrinks To 1/3 Original Size
• Shrinks At 257 Degree Fahrenheit And 125 Degree Celsius
• Operating Temperature Range Of Negative 40 Degree Celsius To 110 Degree Celsius
• No Supplier Warranty

Adhesive Lined Heat Shrink Tubing (ALT) – 3/16″ x 3″ – 3-Pack – Black
Package of 3 Black 3″(7.6cm) long sections with a 3/16″(4.8mm) diameter that shrinks to 1/16″(1.6mm)
Wire Range: 20-12 AWG
Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC
• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief
• Highest shrink ratio – shrinks to 1/3 original size
• Shrinks at 257°F / 125°C
• Operating temperature range of -40°C to 110°C
• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Ancor’s cross-linked polyolefin pipe is significantly stronger than PVC pipe and will not burn like PVC. The heat activated adhesive liner shrinks to…
SKU: NVN-60043
MPN: 302103
UPC: 091887300147
