Description

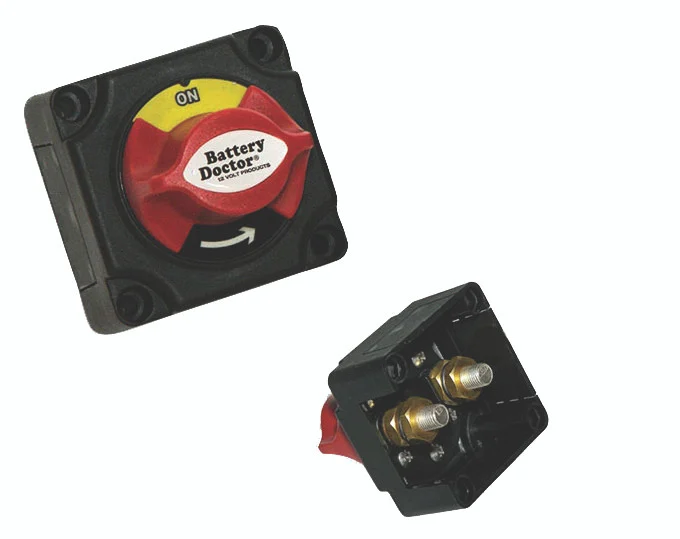

These new Battery Doctor Mini Master Battery Disconnect Switches come in a wide variety of styles. Knob style with a bottom cover for panel mounting or mounting through the fire wall. For use with applications up to 48 Volts DC. The 20387 2-Position Mini Master Battery Disconnect Switch is for use on a single 12 Volt battery – negative cable application. All new disconnect switches are ISO 8846 approved. Specifications subject to change without notice. Continuous rating: 300 Amps. Intermittent Rating: 1000 Amps/5 seconds. Crank Rating: 700 Amps/10 seconds. Dimensions: 2.75″ L x 2.75″ W x 3″ H.
For use with applications up to 48 Volts DC
For use on a single 12 Volt battery – negative cable application
Recess, flush top mount – 4 screw holes
Removable back plate and 4 side knock out plates for battery cables
10mm threaded studs with nuts and removable knob for security
