Description

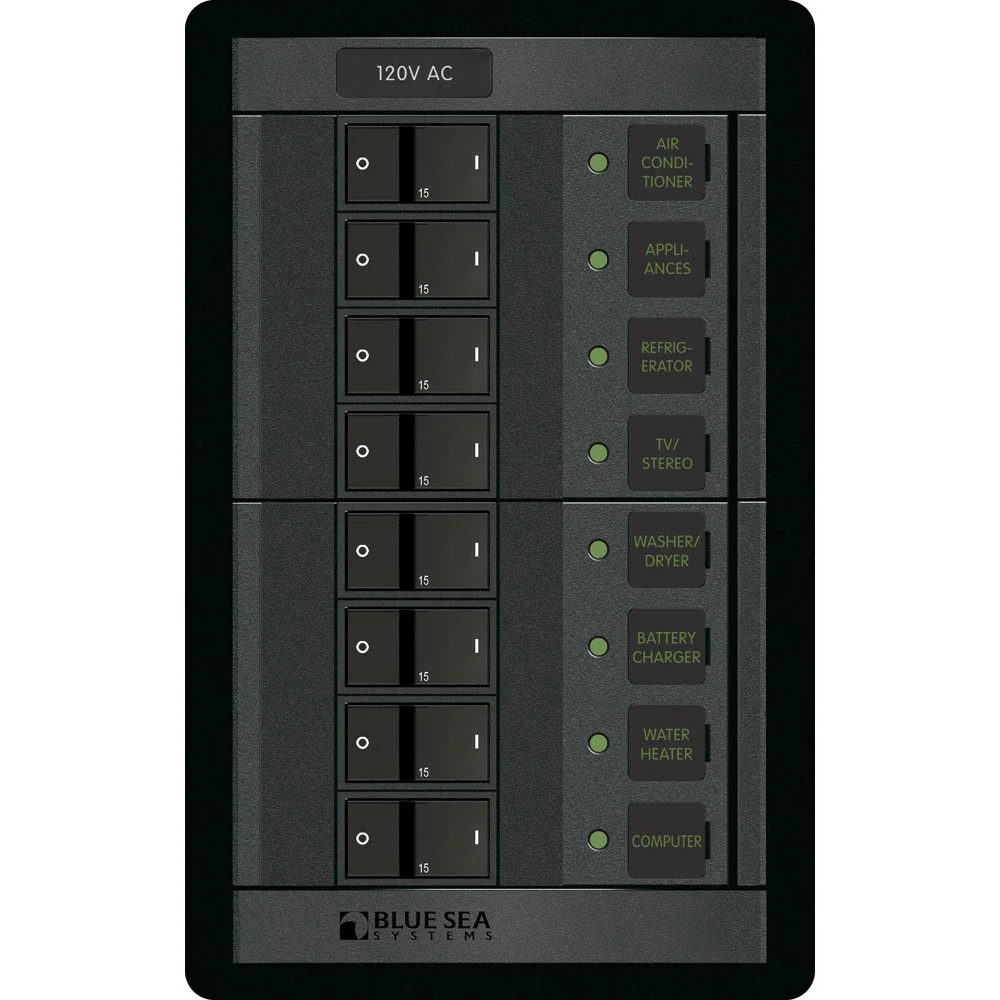

120 Volt AC 8 Position
Features:

• All circuit label positions are backlit
• “ON” indicating LEDs installed in all circuit positions
• Includes 4206-Square Format Label Set

Specifications:

• Positions:8
• Nominal Voltage:120V AC
• Maximum Amperage*:100A
• Height:7.75″ (196.85mm)
• Width:4.88″ (123.95mm)
• Depth:3.00″ (76.2mm)
• Weight:2.68lb (1.22kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4206 – Basic AC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 8-bit 120V AC panel, 8 / 15A circuit. Modular electrical panels can be adapted to the changing needs of your ship, and Blue Sea Systems 360 panels are well known.
SKU: NVN-57233
MPN: 1228
UPC: 632085012281
