Description

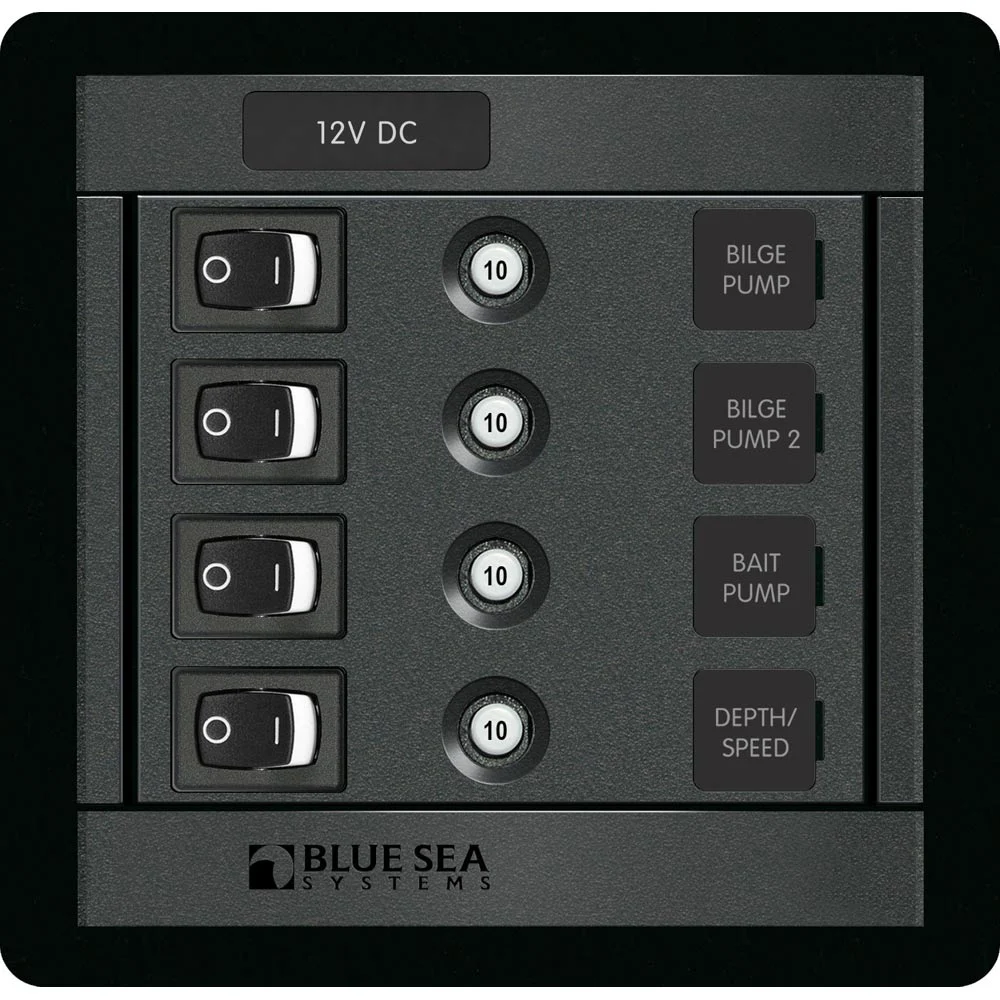

4 Position Switch CLB Square
Provides circuit protection and switching in a compact and economical panel

• Available with voltmeters and ammeters
• Includes 4205-Square Format Label Set

Specifications:

• Positions:4
• Nominal Voltage:12V DC
• Maximum Amperage*:40A
• Height:4.75″ (120.65mm)
• Width:4.88″ (123.95mm)
• Depth:3.50″ (88.9mm)
• Weight:1.05lb (0.48kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(4) – 7054 – Push Button Reset Only Quick Connect Circuit Breaker – 10 Amps
(4) – 7480 – Rocker Switch SPST – ON-OFF
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 4-position switch CLB square. 360 panel system. Provide circuit protection and switching in a compact and economical panel. Four branches 10A push to reset…
SKU: NVN-57218
MPN: 1455
UPC: 632085014551
