Description

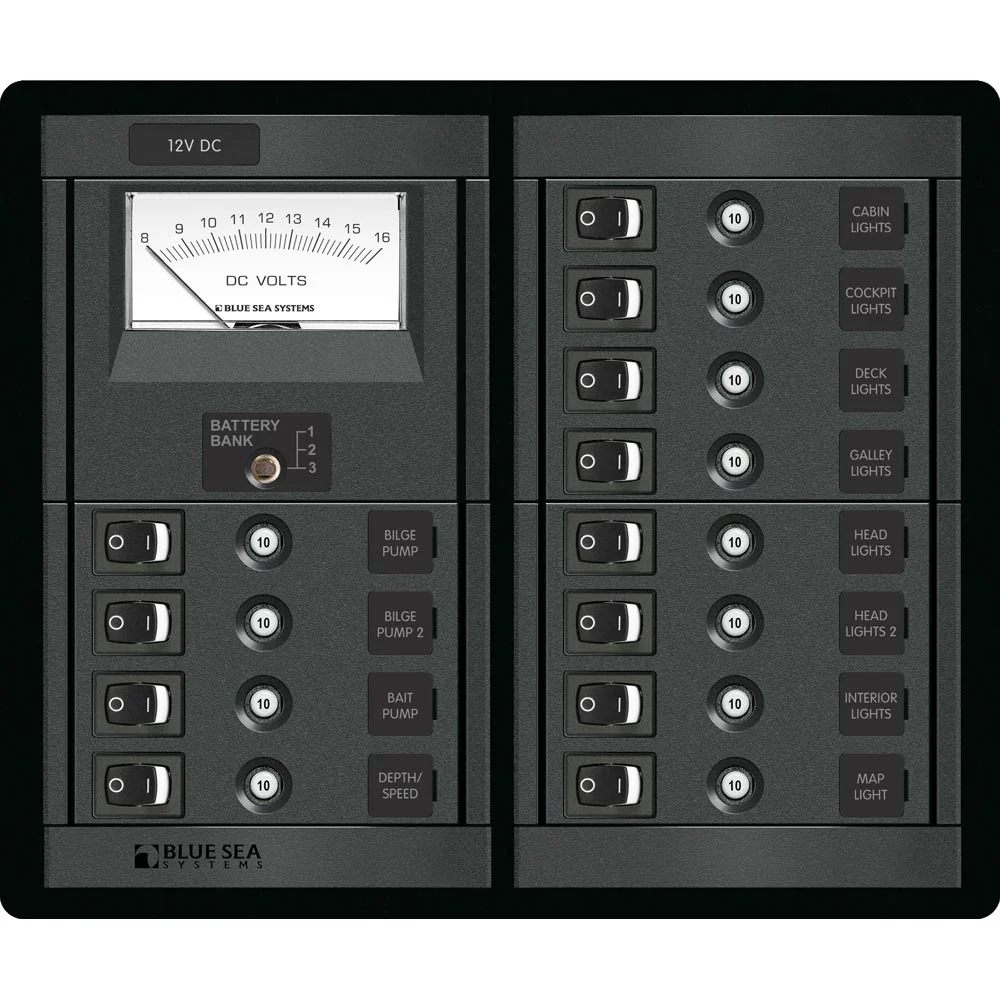

12 Position Switch CLB + Meter Square
Features:

• Available with voltmeters and ammeters
• Panels with meters include a toggle switch to monitor voltage on up to three battery banks
• Includes 4205-Square Format Label Set

Specifications:

• Positions:12
• Nominal Voltage:12V DC
• Maximum Amperage*:120A
• Height:7.75″ (196.85mm)
• Width:9.25″ (234.95mm)
• Depth:3.50″ (88.9mm)
• Weight:4.29lb (1.95kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(12) – 7054 – Push Button Reset Only Quick Connect Circuit Breaker – 10 Amps
(12) – 7480 – Rocker Switch SPST – ON-OFF
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
(1) – 8003 – DC Analog Voltmeter – 8 to 16V DC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 12-digit 12V DC CLB panel with voltmeter. Module-based DC circuit breaker panel with simple rocker switch and push button reset button Blue Sea Systems 360…
SKU: NVN-57225
MPN: 1464
UPC: 632085014643
