Description

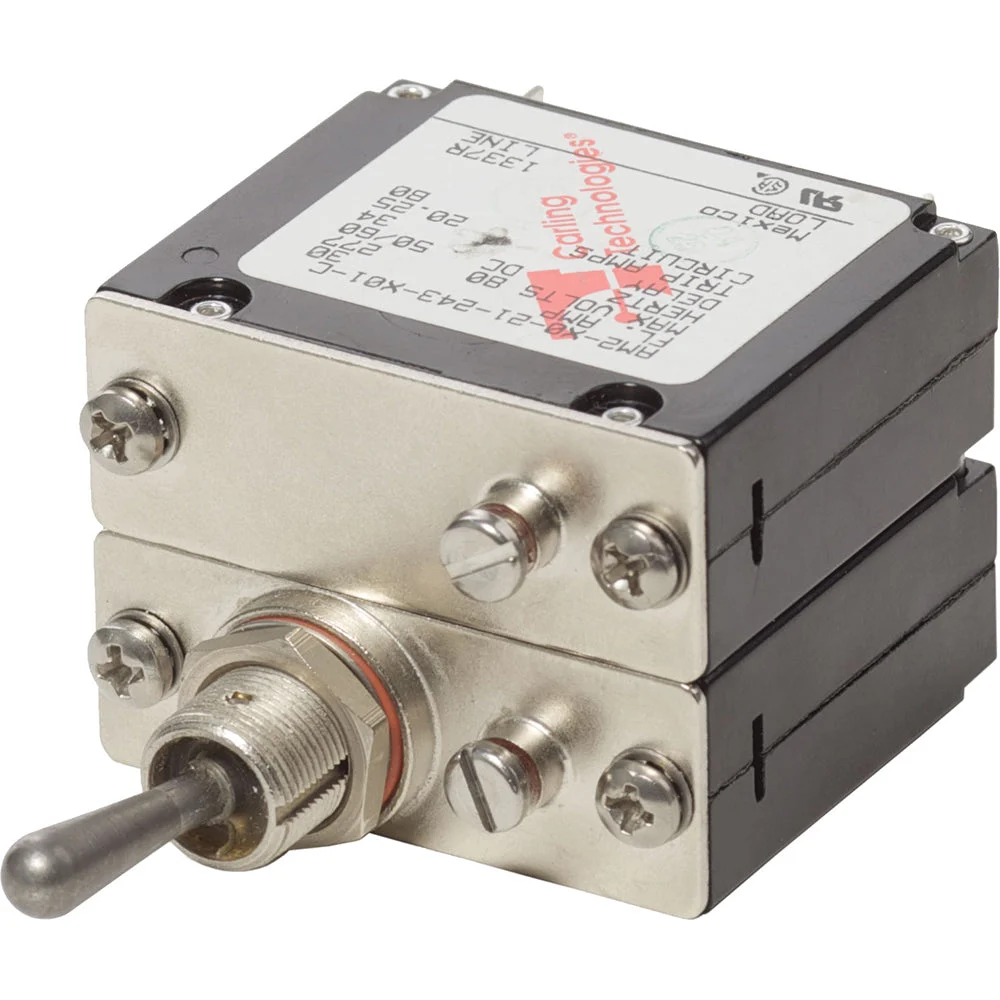

7315 COTS Military Grade A-Series 30 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

• Amperage: 30A
• Actuator Style: Metal Toggle
• Poles: 2
• Max Voltage: 277V AC, 65V DC
• Circuit Breaker Type: Magnetic Hydraulic – Trip Free
• Interrupt Capacity: 1500 A AC, 7500A DC
• Min Operating Temp: -40°C
• Max Operating Temp: 85°C
• Mounting Boss: 1/2-32 Hex Nut SS
• Mounting Nut Torque: 30″-lb
• Screw Terminal Torque: 14″-lb
• Switching Cycles: 6000 Electrical/4000 Mechanical
• Terminal Screw: #10-32 SS
• Weight: 0.13lb (0.06 kg)
• UL 1077

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“May be suitable for use when military specifications are required under CFR 46. This product is great for use in all marine applications. It will satisfy the needs of both pleasure boat enthusiasts and ambitious yacht owners. Get this excellent product for your vessel and prepare to embark on a thrilling adventure.”
SKU: NVN-73806
MPN: 7315
UPC: 632085173159
