Description

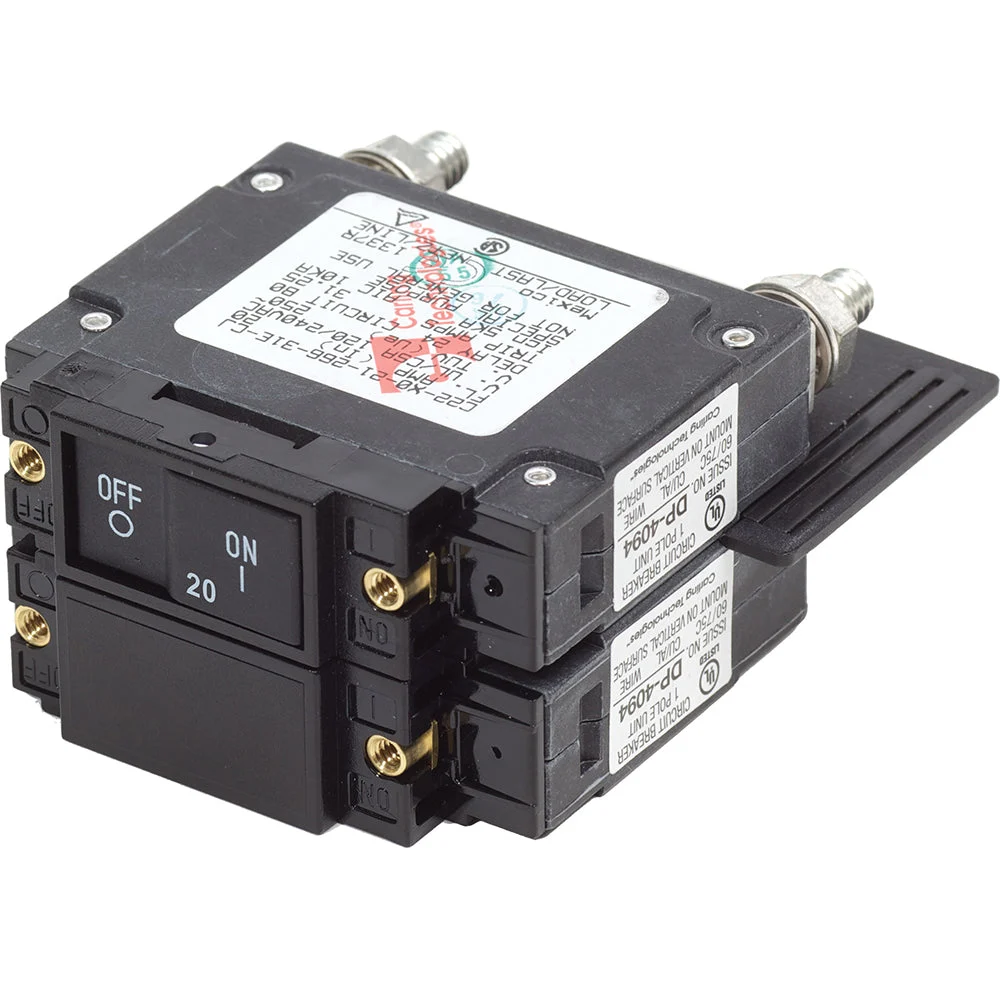

7463 UL-489 Circuit Breaker – 20A Flat Rocker

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

• Amperage: 20A AC
• Actuator Style: Flat Rocker
• Poles: 2
• Maximum Voltage: 240V AC
• Circuit Breaker Type: Magnetic Hydraulic—Trip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 SS
• Mounting Screw Torque: 8 in-lb (0.9 Nm)
• Switching Cycles: 10000
• Weight: 0.23lb (0.1 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“Blue Sea 7463 Ul-489 Circuit Breaker Brand New Product # 7463 The Blue Sea Systems 7463 Ul-489 Circuit Breaker is a that features a Magnetic Hydraulic – trip free, that is rated to 20A and sustain a maximum voltage of 240V AC. It has a flat rocker style actuator which is flush in the ON position, eliminating the risk of accidential switching with a Color actuator that indicates OFF position. The circuit breaker provides overcurrent protection for inverters, bow thrusters, and windlasses by combining switching and circuit protection into a single device. The breaker is easy to install with the provided mounting screws. Suitable for use when Ul-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).”
SKU: NVN-69573
MPN: 7463
UPC: 632085074630
