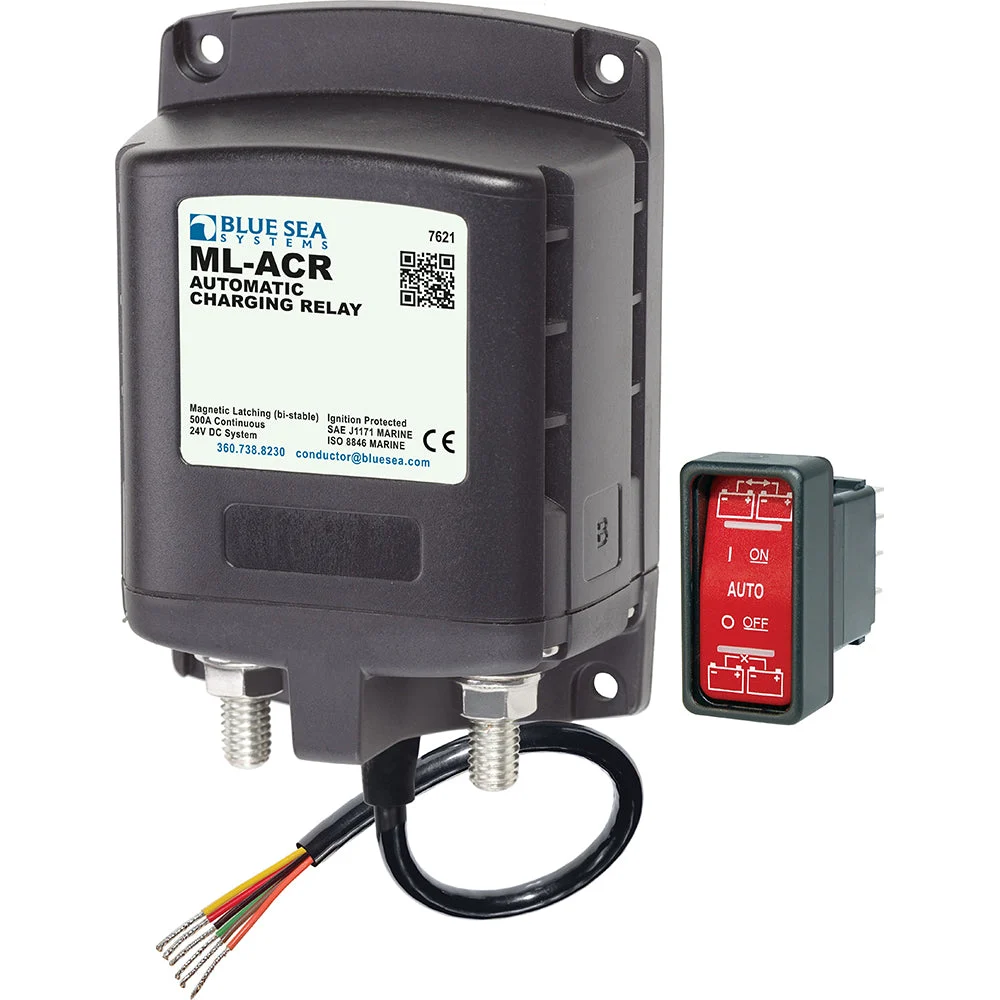

Description

7621
Manual Control: No
Coil Voltage: 24V DC

• Combines battery banks during charging and isolates under discharge
• 500 Ampere continuous rating suitable for use with large battery banks, starters, alternators, and inverter/chargers
• Can be remotely combined with optional switch
• Silver alloy contacts provide high reliability
• 3/8″ copper studs, using Blue Sea Systems superior one piece stud technology, suitable for 300 Ampere continuous rating and large cable connections

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The heavy-duty 500 Amp latch (bistable) relay only draws current when changing the switch state, and does not consume any current in any position in a static state.
SKU: NVN-32563
MPN: 7621
UPC: 632085076214
