Description

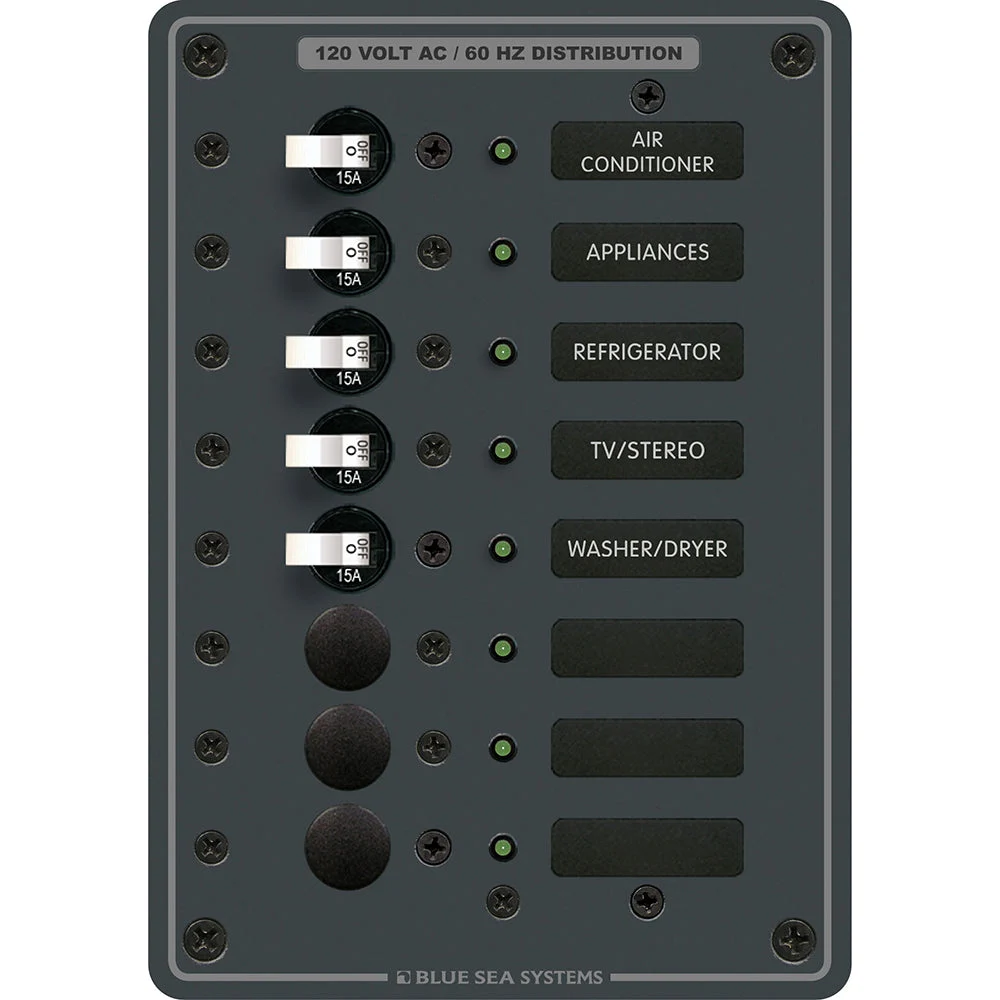

8059 AC 8 Position Toggle Circuit Breaker Panel

Features:

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit posistions
• Maximum panel amperage – 100 Amperes

Specifications:

• Positions: 8
• Nominal Voltage: 120v AC
• Maximum Amperage: 100A
• Height: 7.5″
• Width: 5.25″

Included:

• (5) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
• (1) 8031 Basic AC Panel Label Set – 30 Labels
• (8) 8034 LED – 120v AC Green

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“AC Branch panels distribute current from a high amperage input into lower amperage circuits. Styled to match existing panels, the traditional metal panels are equally suited for use as extensions to existing panels or as full replacements.All panels are pre-wired and include LEDs in all positions and label backlighting. Marine grade aluminum frame securely holds fixed panel components and is chemically treated to resist corrosion. Includes 8031 label set.”
SKU: NVN-19048
MPN: 8059-BSS
UPC: 632085080594
