Description

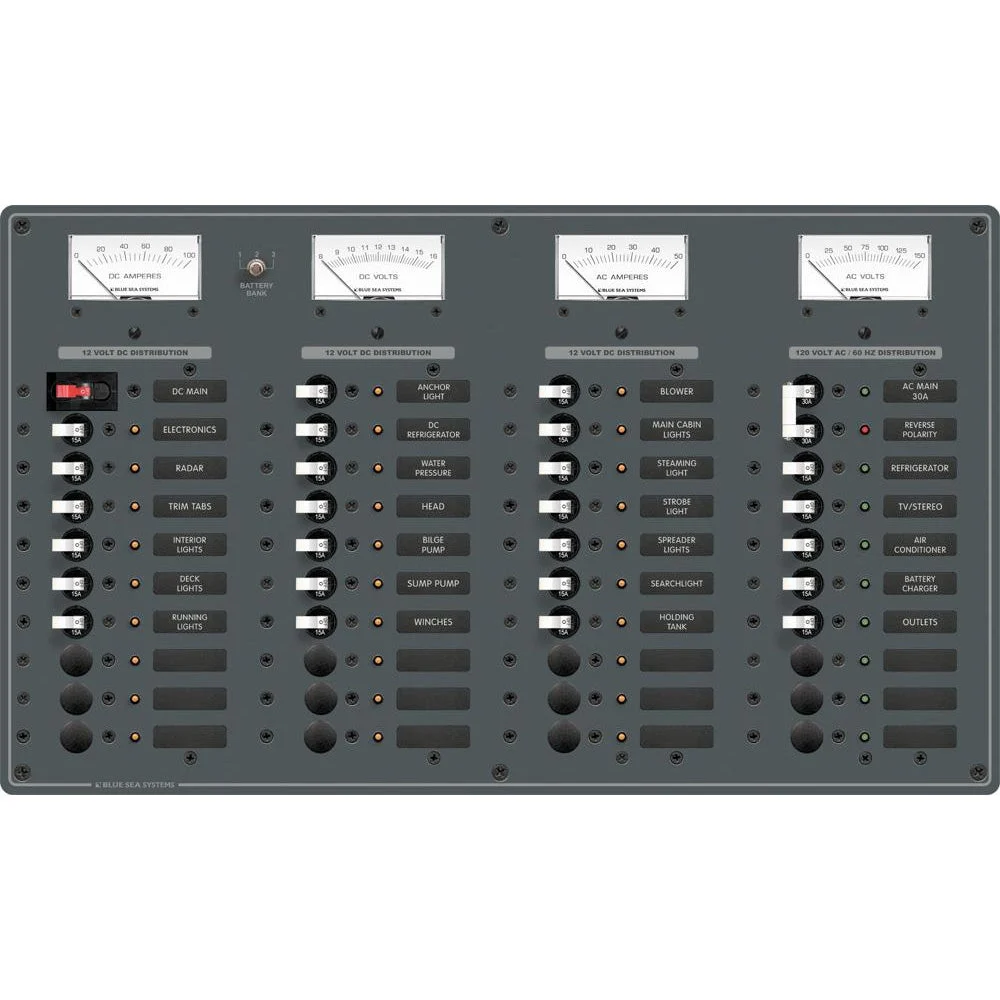

AC Main +8 Positions / DC Main +29 Positions
PN:   8095
White Switches

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage
  • 100 Amperes DC
  • 50 Amperes AC

AC Features

• Red reverse polarity indicating LED
• 9353, 0-150 Volt AC Voltmeter
• 9630, 0-50 Amp AC Ammeter

DC Features

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter
• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

• AC Positions: Source Selectors +8
• DC Positions: Main +29
• 120 Volts AC
• 12 Volts DC
• (1) 30A – (5) 15A AC Circuit Breakers
• (1) 100A – (20) 15A DC Circuit Breakers

Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 8-bit AC main power supply / 29-bit DC main power supply. All AC and DC buses are installed and fully pre-wired. The label backlight is pre-installed. 100 amp C series toggle circuit…
SKU: NVN-20699
MPN: 8095
UPC: 632085080952
