Description

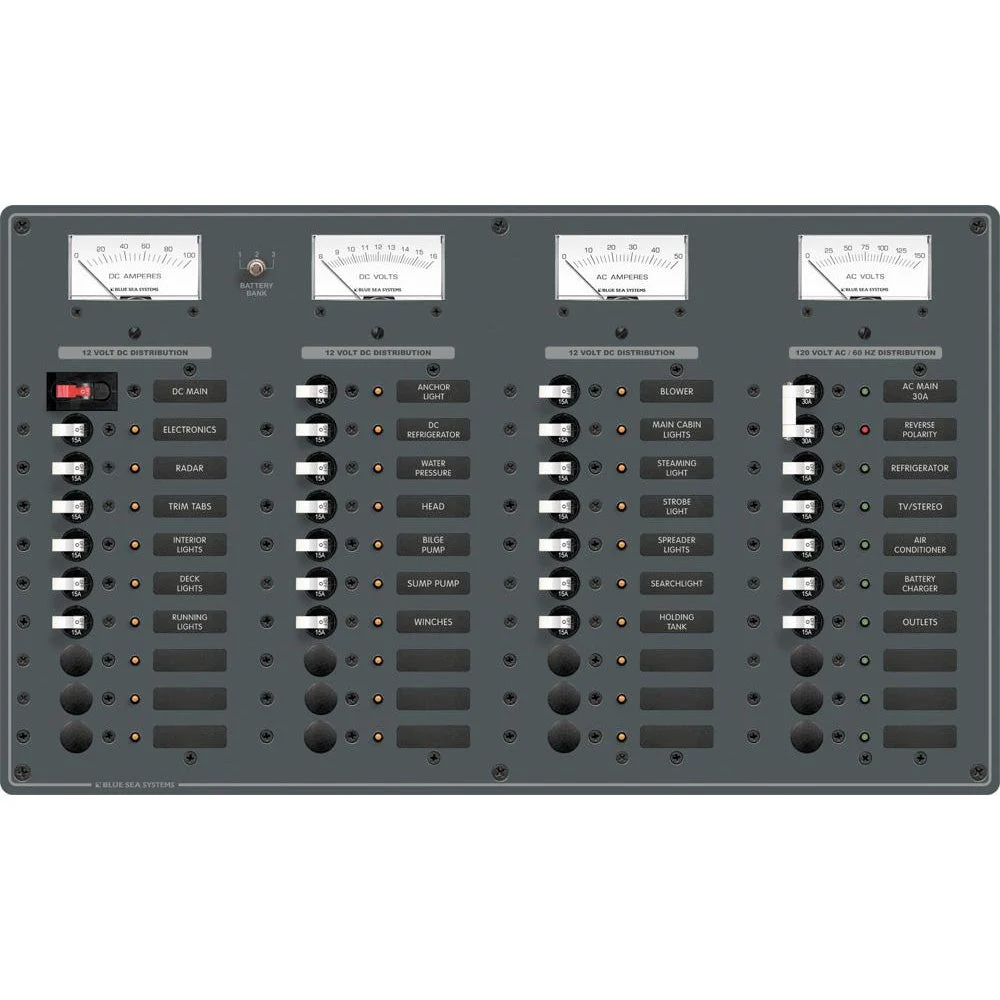

AC Main + 8 Positions / DC Main + 29 Positions
Switches Color: White
Installed AC Breakers

(1) 16A

(5) 8A

Installed DC Breakers

(1) 100A Main

(20) 15A

• Voltage 230v – 12V DC
• All AC and DC buses installed and fully pre-wired
• Label backlighting pre-installed
• ON – indicating LEDs installed in all circuit positions
• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
• Maximum panel amperage – 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The traditional 230V AC/DC main panel provided by Blue Sea Systems has 8 AC and 29 DC positions (8195). This product is very suitable for use in all marine applications. It will satisfy the demand…
SKU: NVN-20722
MPN: 8195
UPC: 632085081959
