Description

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 9009BSS Attributes

• Type: Rotary
• Voltage: 120 Volt
• Current Rating: 30 Amp
• Mount Location: Panel
• Number Of Switch Positions: 3
• Color: Black/ Blue

Blue Sea 9009BSS Features & Benefits

• Heavy Duty Industrial Rated Switch
• Switches 2 To 120 Or 230 Volt AC Sources
• Compact Solution When Circuit Protection Is Provided
• Allows Connecting One Of Two Different AC Sources To One Circuit
• Mounts In Panels Up To 0.16 Inch Thick
• Intuitive Function – One Hand Operation
• UL Listed
• No Supplier Warranty

Blue Sea 9009BSS Installation Instructions

• 6670-003.pdf

Blue Sea 9009BSS Technical Bulletins

• RotarySwitchAssembly.pdf
• 9009-schematic.pdf

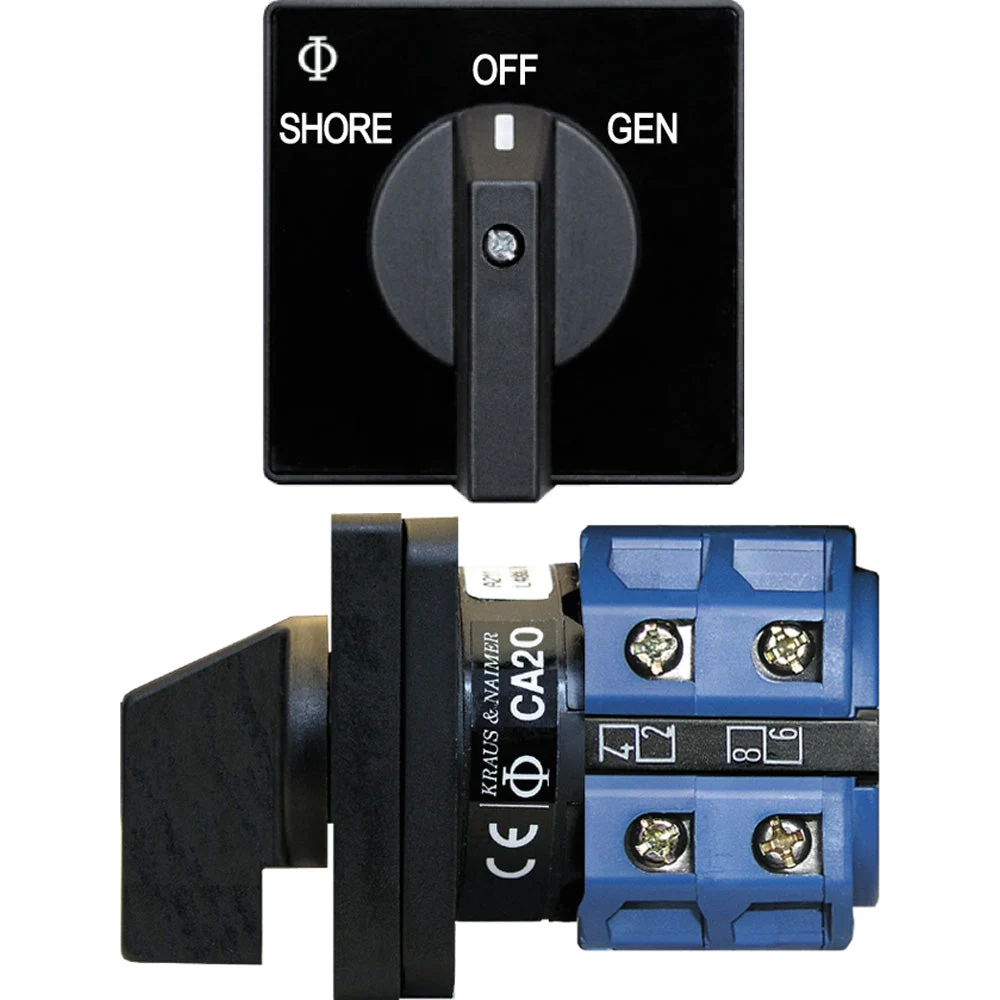

9009
Switch, AC 120VAC

Amperes	32
Positions	2+OFF
Poles	2

• Switches 2 – 120 or 230 Volt AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two different AC sources to one circuit
• Mounts in panels up to 0.16″ (4.00mm) thick
• Heavy duty industrial rated switch
• Intuitive function – One hand operation
• UL listed
• 600 Volt AC max

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 30A rotary source selector, OFF + 2 positions, 2 poles, 120V. Compact rotary switch, can separate AC current load, easy to use two AC power…
SKU: NVN-20949
MPN: 9009
UPC: 632085090098
