Description

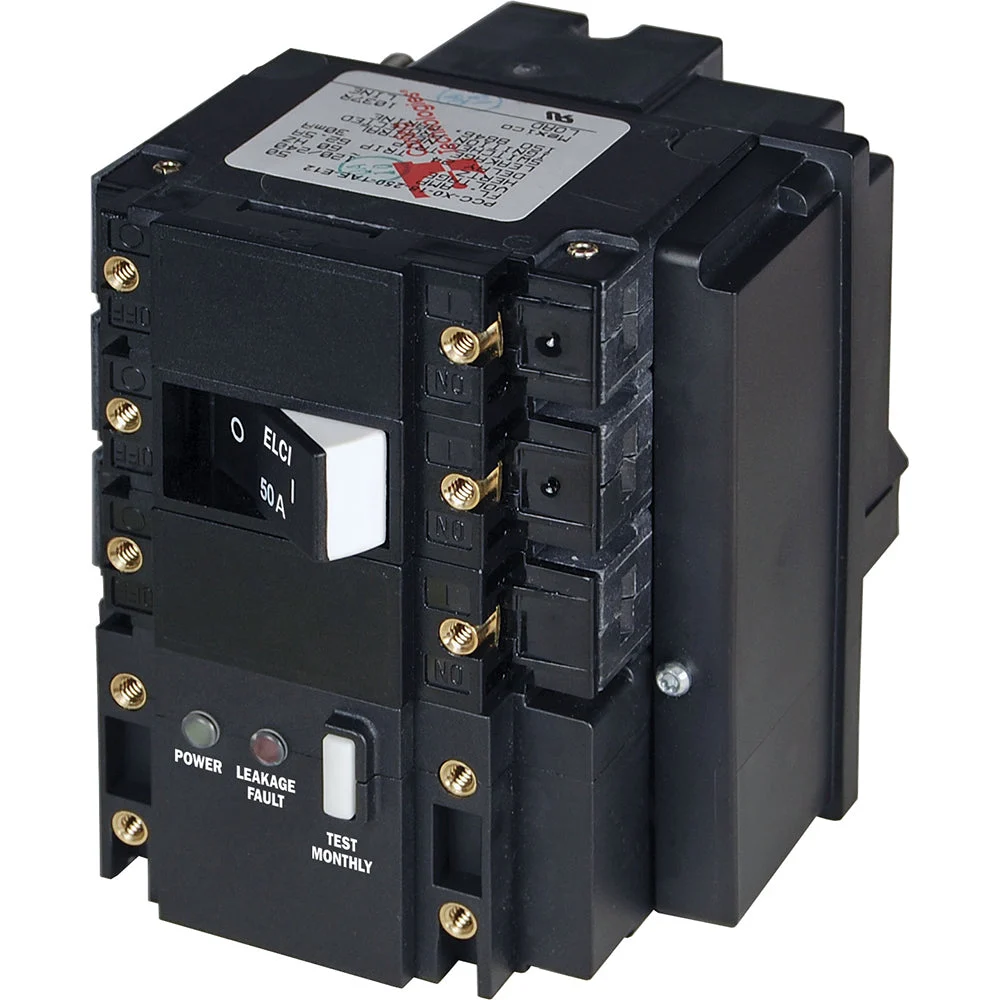

C-Series ELCI Main Circuit Breaker – 120/240V AC 50A

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 50A
• Actuator Style: Flat Rocker
• Poles: 3
• Ignition Protected: Yes
• Max Voltage: 120VAC per pole/240VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic – trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 66 degrees C
• Leakage Trip Amps: 30mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“These are very small terminal blocks and are typically used for electronics interfacing such as NMEA and other data connections where their compact size allows a large number of connections in a small space. They take a connector with a #6 hole to match the screw size. Although they have a rating of 20 Amps and even have an AC voltage rating of 300 Volts they are too small and fiddly for most general purpose applications #6 screws require #6 ring terminals Detailed specification, drawings, and description.”
SKU: NVN-85024
MPN: 3104
UPC: 632085031046
