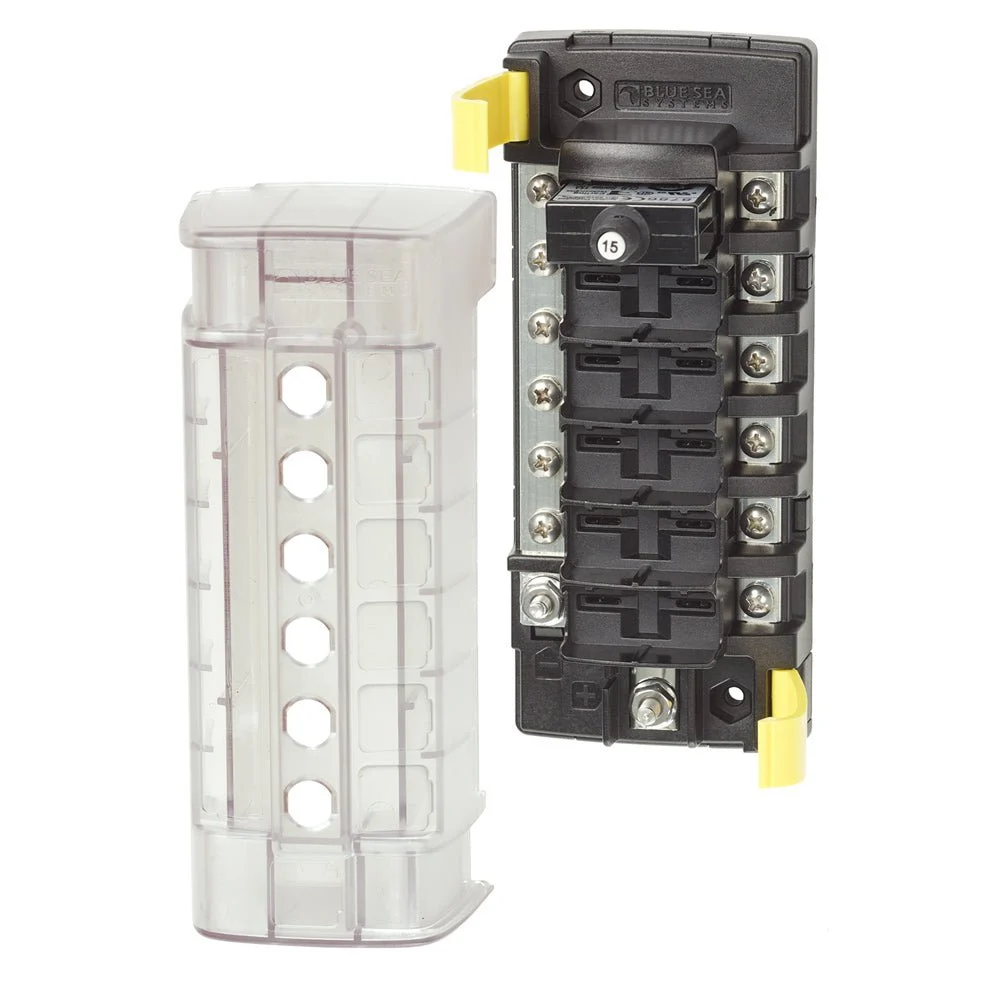

Blue Sea Systems 5052 ST CLB Circuit Breaker Block – 6 Position w/Negative Bus – Marine Electrical Replacement Part is organized for electrical wiring & connectors shoppers who need a clear, professional marine parts buying experience.

ST CLB Circuit Breaker Block – 6 Position w/Negative Bus Features Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications: Circuits: 6 Maximum Amperage: 100A (per block) 32A (per circuit) Maximum Voltage: 32V DC Mounting: #8 Screw (M4) or #8 Nut Negative Bus: Yes Source: Common Source Minimum Operating Temperature: -10° C Maximum Operating Tempera

Fitment & Product Details

• Brand / Manufacturer: Blue Sea Systems, Blue Sea
• Voltage: 32V
• Material: copper
• Color: blue, clear

• Search-optimized by brand, system, part type, and fitment cues.
• Verify compatibility with your original part number, engine model, and application before ordering.
• Built for boat owners, e-commerce shoppers, and professional marine service teams.
