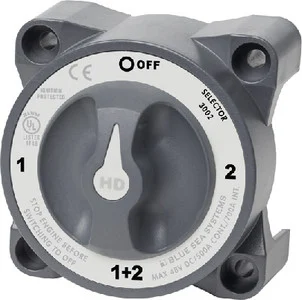

Blue Sea Systems 3002 HD-Series Heavy Duty 4 Position Selector Battery Switch
Up to 500A continuous rating for large diesel engines. One-piece tin-plated copper stud design never loosens over time. Terminal studs accept 1/2″ or M12 ring terminals. Ignition protected and UL Listed. Selector features make-before-break contact design. AFD ( Alternator Field Disconnect models allow switching while running the engine without damaging the alternator.

• Cranking Rating 30 sec.: 1600A DC


• Cranking Rating 1 min.: 1150A


• Intermittent Rating 5 min.: 700A


• Continuous Rating: 500A

Type : Selector 4 Position
:
:
:
:
:
