Description

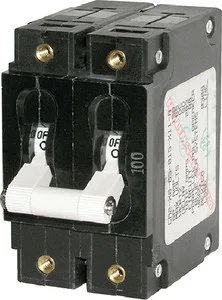

Blue Sea Systems 7251 Double Pole AC Circuit Breaker 50 Amp White
Provides overcurrent protection for inverters bow thrusters and windlasses. Combines switching and circuit protection into a single device. “Trip Free” – cannot be held closed after trip. Double and triple pole circuit breakers will trip all poles if any one pole trips. White.
DC Features

• Large frame provides stud termination for 5-300 Amp loads


• Provides overcurrent protection for inverters bow thrusters and windlasses


• Offers high interrupt capacity – suitable for Main circuit protection


• Trip Free – cannot be held closed after trip

AC Features

• Frequently used for 120/240 Volt AC circuit protection


• Double pole can be used as AC Main circuit breaker to switch hot and neutral or two hots in 120/240 Volt AC Branch applications


• Triple pole can be used as 120/240 Volt AC Main circuit breaker to switch both lines (hots) and neutral


• Double and triple pole circuit breakers will trip all poles if any one pole trips

Amps : 50
:
:
:
:
:
