Description

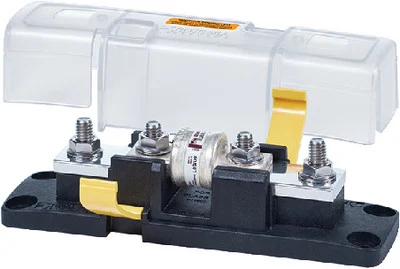

Progressive Industries Class T Fuse Block With Insulating Cover 200A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics.

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse


• Insulating cover satisfies ABYC/USCG insulation requirements


• Cover breakouts allow wire access in any direction


• Stud design ensures secure fuse mounting even with high heat


• Stainless steel studs provide resistance to corrosion and high torque


• One-piece stainless flange nuts ensure safe and secure connections


• UL 94-V0 base resists high heat

Amps : 110-200A
Stud : 1/4″-20 (M6)
Size : Up to 4/0 AWG
:
:
:
