Description

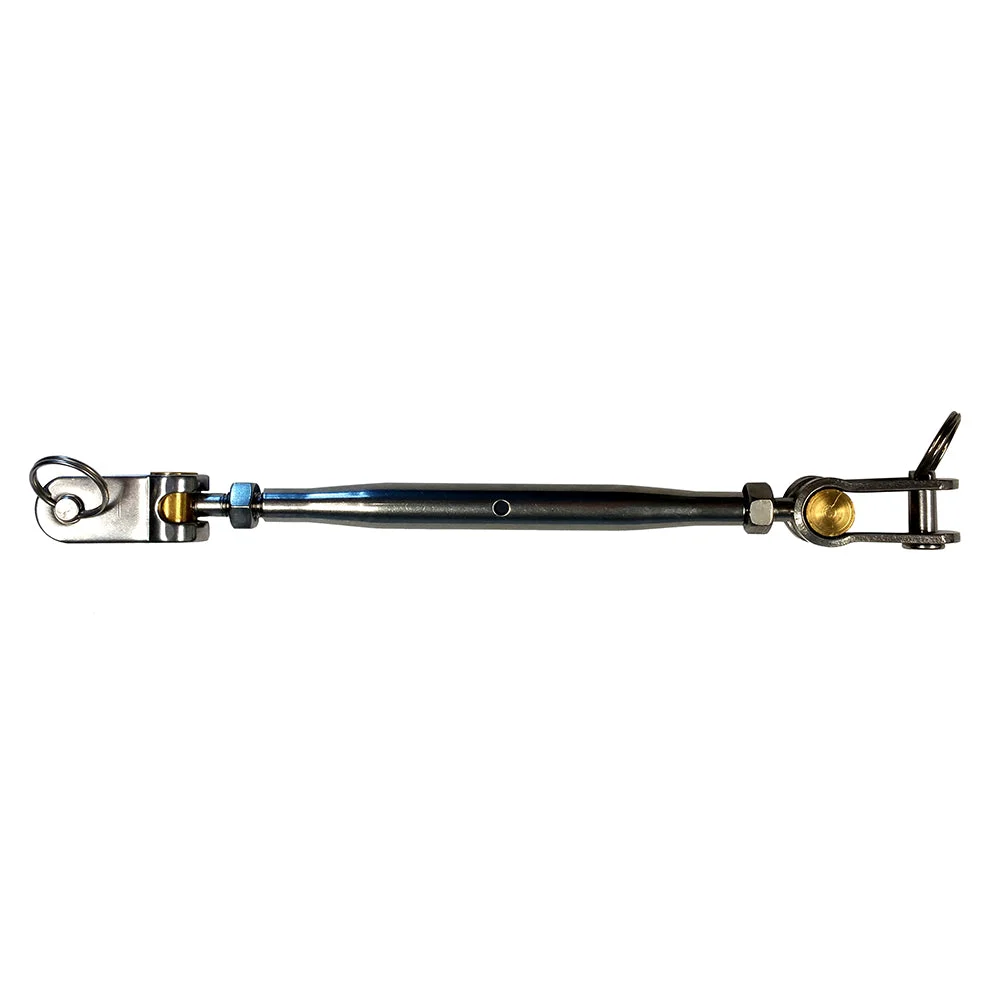

Jaw/Jaw Tubular Turnbuckle T-Style 5/16-24 Thread

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.

Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

Specifications:

• Jaw with “T” Toggle Construction
• Machine swage
• Bronze body/ 316 stainless ends
• Wire size: 3/16″
• Breaking strength: 4,000 pounds
• Safe working load: 1,600 pounds
• Thread size: 5/16-24
• Pin to pin length: 9″ (closed) 12-3/4″ (open)
• Body length: 5-1/8″
• Pin diameter: 5/16″
• Weight: 8 ounces

Max Wire 3/16 WLL 1600 lbs closed 9 12-3 / 4 Premium stainless steel turnbuckle made by C. Sherman Johnson. 316 main body, strength is 18-8 studs. Navy bronze button nuts (except…
SKU: NVN-71539
MPN: 05-110
UPC:
