Description

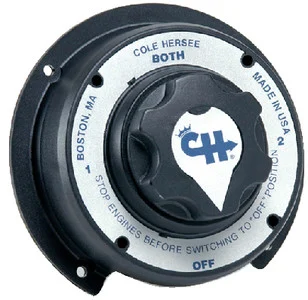

Dual Battery Switch
Permits current to be carried by either of 2 batteries by 2 batteries simultaneously or cuts off all current at source. Ignition protected. Plastic case knob and insulator. Four positions: OFF ON-#1 Battery ON-both batteries and ON-#2 battery.
Rating 6-36V DC; 310A Continuous 500A intermittent
3/8″ copper studs
Size 6″ flange diameter Overall Height 2-5/8″
Installation surface mount or install through a panel with a 3-5/16″ dia. hole
UL Listed. Marine UL Listed
Type : 1 2 Both Off
Size : 6″ Dia. x 2-5/8″
:
:
:
:
