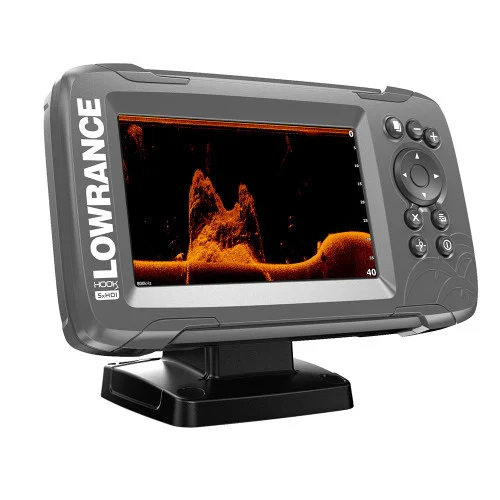

HOOK²-5x 5″ GPS SplitShot Fishfinder w/Track Plotter Transom Mount SplitShot Transducer

The world’s easiest fishfinder, HOOK² 5x SplitShot offers simple menus, easy access to key functions and Autotuning sonar. Powered by proven Lowrance® performance, HOOK² 5x features 2-in-1 sonar with wide-angle, Broadband coverage and DownScan Imagingâ„¢, plus a simple and accurate GPS plotter. Just plug it in and fish. Yes, it’s that easy.

Features:

• 5-inch SolarMAXâ„¢ Screen – Get crisp and clear views of fish and fish-holding structure with the excellent clarity and daylight visibility of a high-resolution SolarMAXâ„¢ display.
• Automated sonar settings – You will spend more time fishing and less time dialing in your sonar with HOOK² Autotuning sonar. Just plug it in and fish. It doesn’t get any easier.
• Easiest-to-use menu operation and Dedicated Keypad – Make the adjustments you want with fewer key presses via a simplified menu layout and dedicated keypad.
• SplitShot 2-in-1 Sonar with Broadband sonar and DownScan Imagingâ„¢ – SplitShot 2-in-1 sonar makes it easier to stay on the fish, delivering the best traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat.
• Built-in GPS Plotter – Save waypoints, follow trails and navigate to your favorite fishing spot with a simple and accurate GPS Plotter.
• Easy front-dash or quick-release bracket mounting installation – Pick the best installation option for your boat from simple flush-mount and quick-release-bracket installation options.(Comes with Both)

Specifications:

• Display: 5″ (127mm)
• Resolution: 800 x 480
• Backlighting: LED
• Power Output: TBD
• Operating Frequency: 200 kHz, 455/800 kHz
• Operating Voltage: 10.4-17 VDC (min-max)
• Warranty: One year
• Depth Alarm: Yes
• Shallow Alarm: Yes
• Temperature Readings: Yes
• Transducer Type: SplitShotÂ
• Display Type: WVGA color TFT LCD
• Backlighting Levels: Adjustable Screen And Keypad
• Waterproof Standard/rating: IPx7
• Product Width: 7.31″ / 185.6 mm
• Product Depth: 3.28″ / 83.3 mm
• Product Height: 4.38″ / 111.2 mmÂ
• Power Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)

Product : LOWRANCE HOOK2-5X GPS SPLITSHOT FISHFINDER
Manufacturer : Lowrance
Manufacturer Part No : 000-14016-001
UPC : 9420024166178
