Description

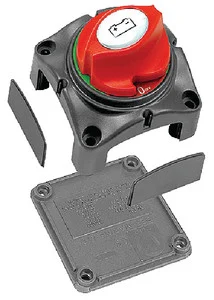

BEP Contour Surface or Recessed Manual Battery Master Switch
2 POSITION – ON/OFF
Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact versatile solution.
The 701 offers a contour lock system allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position however can be removed by switching to an anti-clockwise 45º position. The control knob also features an interchangeable labeling system allowing a full range of applications. A rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Tin plated copper studs & nuts. Rated for 275 amps continuous 455 intermittent 1250 amps cranking.

• Compact lightweight


• Removable key


• Countersunk recesses for surface mount application


• Standard 2-1/16″ (52 mm) hole cut out (same as standard gauge hole)


• Inside: captive inserts for 3/16″ (4.8 mm) nuts providing full access for cables with no restrictions


• Standard interchange label system


• Molded in high temperature fiber reinforced plastics

Mount : Surface or Recessed
Volts : 17685
Size : 2-3/4″ x 2-3/4″ x 3″
:
:
:
