Description

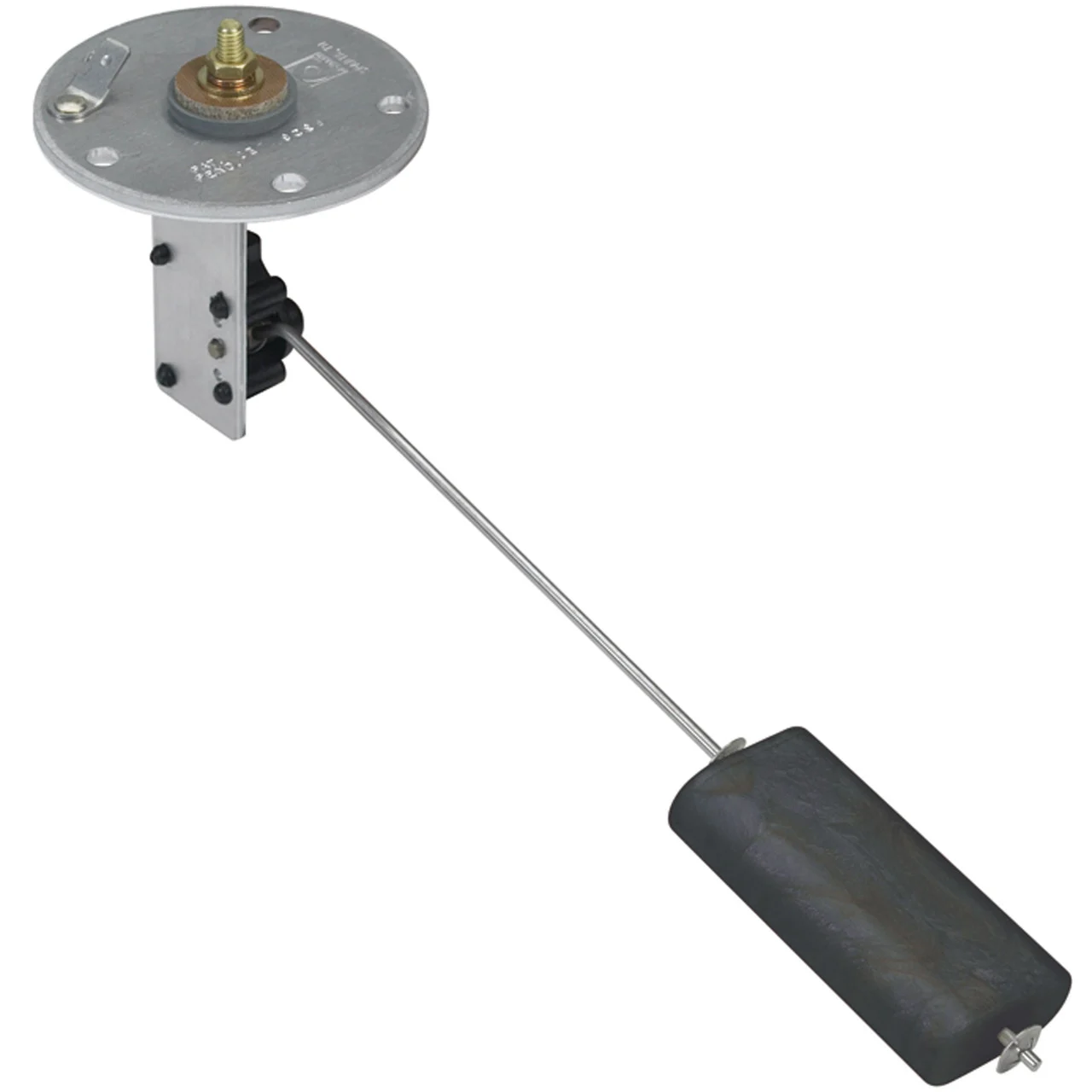

The Swingarm Electric Sending Unit gathers fuel level information the same way as the mechanical sending units. Internal components will not rust or corrode. Float rotates easily in 90° increments for tank wall and baffle clearance. The unit features a 33-240 Ohms calibration (industry standard). A connection to a dash mounted gauge is required (sold separately). Includes a 5-hole gasket and screws for installation.
Float rotates easily in 90° increments for tank wall and baffle clearance.
33-240 Ohms calibration (industry standard)
Connection to a dash mounted gauge is required (sold separately)
Includes a 5-hole gasket and screws for installation
Tank Depth: 4″ to 28″
