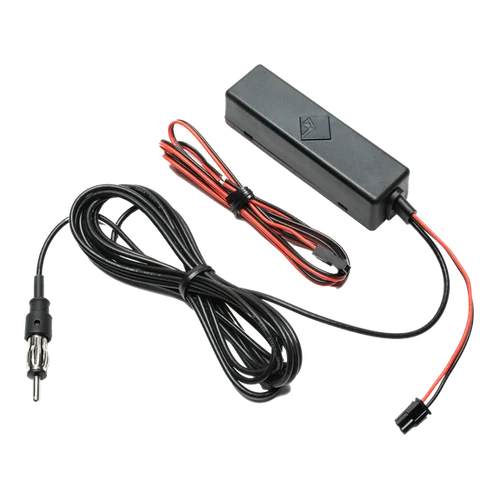

Rockford Fosgate AM/FM/WB Amplified 12V Antenna PMX-ANT
The PMX-ANT is an amplified antenna for use with Rockford Fosgate PMX source units to boost radio signals in distant areas.
The PMX-ANT is a powered antenna designed to boost AM/FM and WB (weather band) stations. It’s universal connectivity allows for use in Marine or UTV installation through a quick power connector.
FEATURES AT A GLANCE
- Universal AM/FM/WB Antenna
- 12VDC Powered for +20dB of Signal Gain
- Omnidirectional
- IP67 Water & Dust Rated
- Double Sided Tape Mounting
- Quick Power Connect for Easy Installation
Compatibility
| MODEL | DESCRIPTION |
|---|---|
| PMX-2 | Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7″ Display |
| PMX-3 | Compact Digital Media Receiver w/ 2.7″ Display |
| PMX-5 | Punch Marine AM/FM/WB Digital Media Receiver 2.7″ Display |
| PMX-5CAN | Punch Marine AM/FM/WB Digital Media Receiver 2.7″ Display w/ CAN bus |
| PMX-8BB | Punch Marine Hide-Away AM/FM/WP Digital Media Receiver |
| MPN: | PMX-ANT |
| Idle Current: | < 20 mA |
| Signal Boost Range: | Unpowered: 0 dB Powered: 20 dB |
| Operating Voltage: | 9 – 16 VDC |
| Operating Temperature: | -30℉ to 70℉ (-34℃ to 21℃) |
| Cable Length: | Power: 3.58 ft. (109 cm) Antenna: 8.4 ft. (256 cm) |
| Height: | .96″ |
| Width: | 1.11″ |
| Depth: | 3.89″ |
