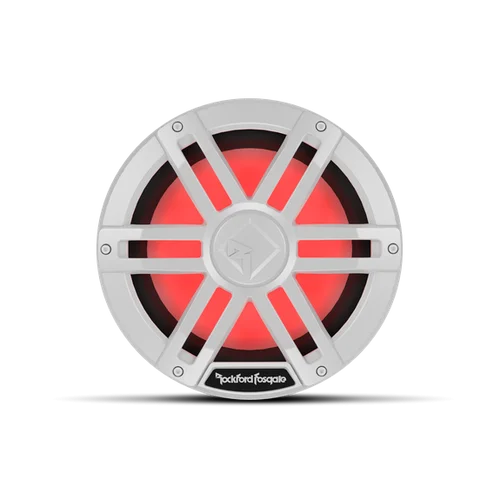

Rockford Fosgate M1 10″ DVC 4 Ohm Color Optix Marine Subwoofer M1D4-10
The M1D4-10 Color Optix™ 10” DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.
The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch.
FEATURES AT A GLANCE
- Optically clear UV stable RGB Lighting Encapsulation
- 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Fully insulated silicone tinsel leads
- Vented motor design with water-repelling nano coated mesh screen
- Zinc Nickel-plated Marine grade brass connection terminals
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Co-molded surround and mineral filled polypropylene cone body
- 2-Year Warranty
| UPC: | 227-M1D410 |
| MPN: | M1D4-10 |
| Size: | 10″ |
| Nominal Impedance (Ohms): | 2-Ohm or 8-Ohm Switchable |
| Power Handling (Watts RMS): | 300 Watts RMS 1200 Watts PEAK |
| Voice Coil Diameter: | 2″ (50mm) |
| Magnet Weight (oz): | 47.70 oz. (1.35 Kg) |
| Voice Coil Type: | Dual Voice Coil |
| Frequency Response: | 20 Hz – 750 Hz |
| Woofer Displacement: | 0.10 cu. ft. (2.80 Liters) |
| Speaker Connector: | Deutsch |
| Cutout Diameter: | 8.90 in. (226 mm) |
| Mounting Depth: | 4.23 in. (107.4 mm) |
