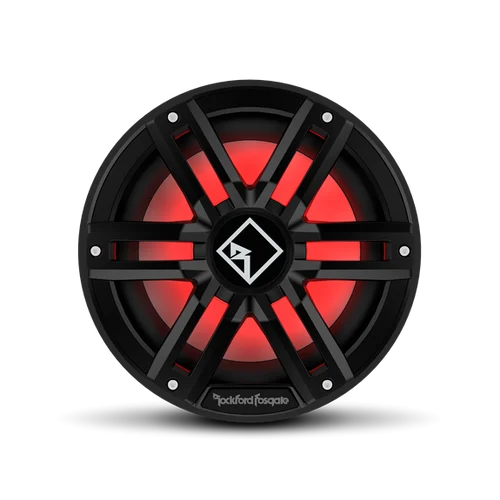

Rockford Fosgate M2 10″ DVC 2 Ohm Color Optix Sealed Enclosure Marine Subwoofer Black/Stainless M2D2-10SB

The M2D2-10SB is a 10” DVC 2-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.

The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.

FEATURES AT A GLANCE

• Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
• Optimized for small sealed enclosures when there is very little space for an enclosure
• Element Ready™ design protects against outdoor exposure
• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Deutsch™ connector front/rear silicone seal protects against water ingress
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• IPX6 Marine Grade for prevention of water intrusion
• Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
• 2-piece grille allows for interchangeable stainless-steel or “sport” option
• Gold plated Marine grade brass terminals provide a corrosion resistant connection
• Klippel Verified certification program delivers the best possible loudspeakers
• 2-Year Warranty
• Injection molded mineral filled polypropylene cone body with UV inhibitors

Specs

UPC:	227-M2D210SB
MPN:	M2D2-10SB
Size:	10″
Nominal Impedance (Ohms):	1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS):	400 Watts
Voice Coil Diameter:	1.95″ (49.53 mm)
Magnet Weight (oz):	32.9 oz. (0.9 Kg)
Voice Coil Type:	Dual Voice Coil
Woofer Displacement:	0.07 cu. ft. (2.03 Liters)
Speaker Connector:	Deutsch™ and 1/8″ Spade
Cutout Diameter:	8.87″ (225.3 mm)
Mounting Depth:	4.24″ (107.7 mm)
