Description

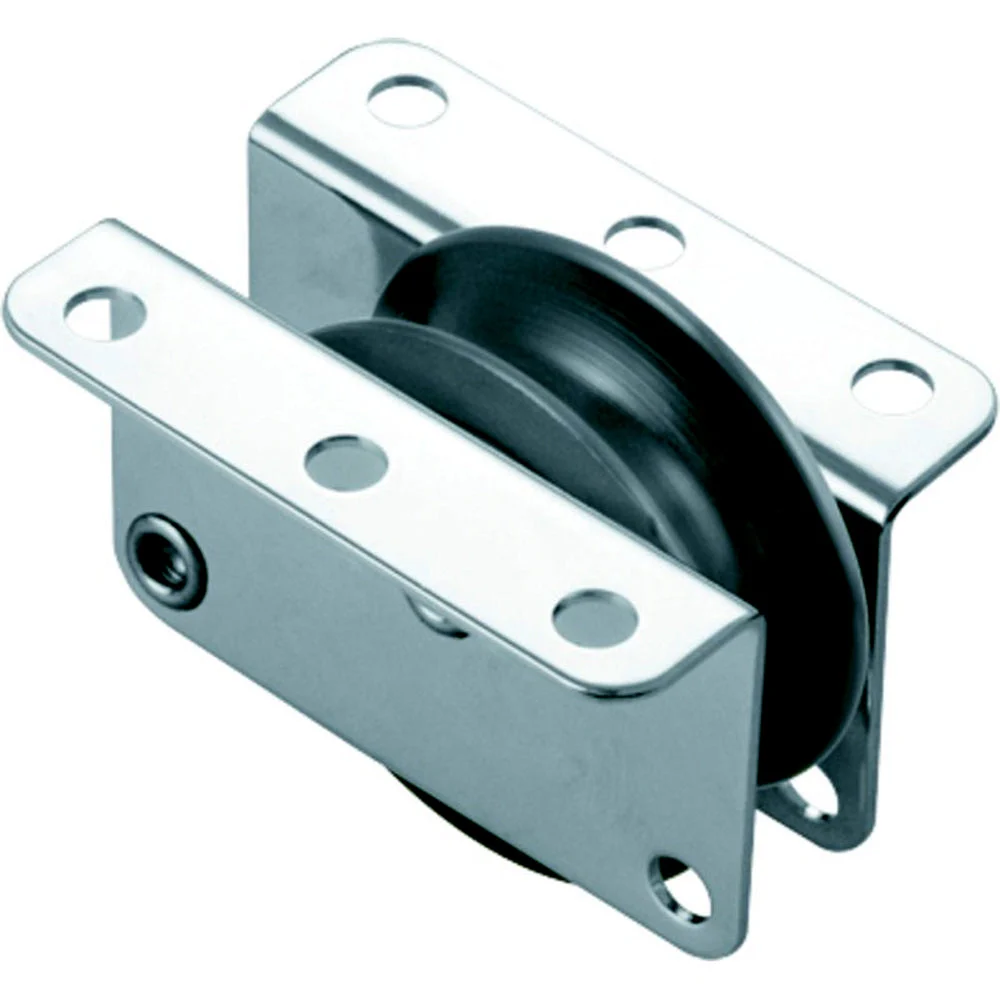

Series 30 High Load Exit Box for Single Rope or Wire
Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered
Applications:

• Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing

Materials:

• Nylatron&regl sheave
• Grade 316 Stainless Steel cheeks

Specifications:
Sheave Ø: 30.0mm(1-3/16″)
Max. Rope Ø:8.0mm(5/16″)
Max. Cable Ø: 4.0mm(5/32″)
B.L.: 800kg(1,760lbs)
“Series 30 High Load Exit Box for Single Rope or Wire Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered Applications Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing Materials Nylatronu00ael sheave Grade 316 Stainless Steel cheeks Specifications Sheave u00d8 (1 3 16 ) Max. Rope u00d8 (5 16 ) Max. Cable u00d8 (5 32 ) B.L. 800kg(1,760lbs)”
SKU: NVN-55172
MPN: RF31712
UPC: 9316800335114
