Description

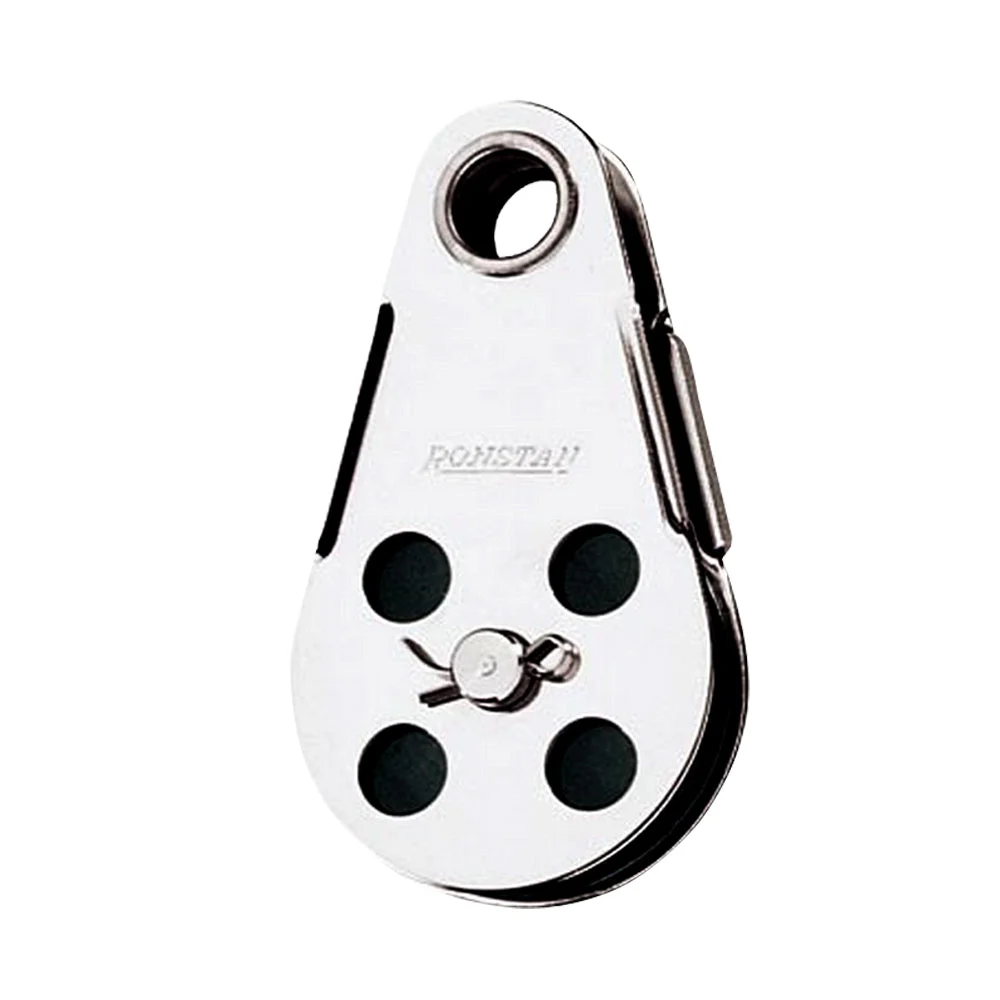

Wire Block – Tubular Rivet Head w/Removable Nylatron® Sheave – 45mm(1-3/4″) Sheave Diameter
Wire blocks have purpose designed narrow sheaves and grooves.Removal sheave for easy fitting and without cutting the wire termination
Features:

• Flared cheeks to minimise chafing
• Removable sheaves
  Applications:
  Wire blocks suit halyards, vang and backstay applications
  Materials:
  • Grade 316 stainless steel cheeks
  • Nylatron® sheave

  Specifications:
  Sheave Ø: 45mm(1-3/4″)
  Max. Cable Ø: 6mm(1/4″)
  M.W.L:850kg(1,870lbs)
  B.L.: 1,700kg(3,740lbs)
  Weight: 88kg(3.1oz)
  A single block can use a cascaded block system to double the power of the rope block. Blocks with a pulley diameter of more than 1 inch have removable anodized aluminum pulleys with Delrin bushings…
  SKU: NVN-55033
  MPN: RF103
  UPC: 9316800067466
