Description

SAM Series low interference, high efficiency modified sine wave DC to AC inverters convert 12 Volt DC to 115 Volt AC at an output frequency of 60 Hertz.

Samlex America SAM300012 Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 3000 Watt
• Peak Output Power (W): 6000 Watt
• Ampere Rating: 26 Amp
• Efficiency: 90 Percent
• Number Of AC Outlets: 3
• Length (IN): 16-1/2 Inch
• Width (IN): 8 Inch
• Height (IN): 3.3 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: Yes
• With Reverse Battery Protection: No
• With Thermal Protection: Yes
• With Battery Cables: No
• With Built-In Charger: No
• With Fuse: No

Samlex America SAM300012 Features & Benefits

• Compact Design
• Load Controlled Cooling Fan
• Universal Protection Circuit – Thermal, Battery, Overload, Short Circuit, Earth Fault
• Soft Start Technology
• Cool Surface Technology
• Low Interference Technology
• Limited 2 Year Warranty

Samlex America SAM300012 Installation Instructions

• 11002-SAM-1000-1500-2000-3000-12-1217-Hrez.pdf

Samlex America SAM300012 Technical Bulletins

• 12002-SAM-3000-12-0814-Hrez.pdf
• 41600-SAM-Series-0520.pdf

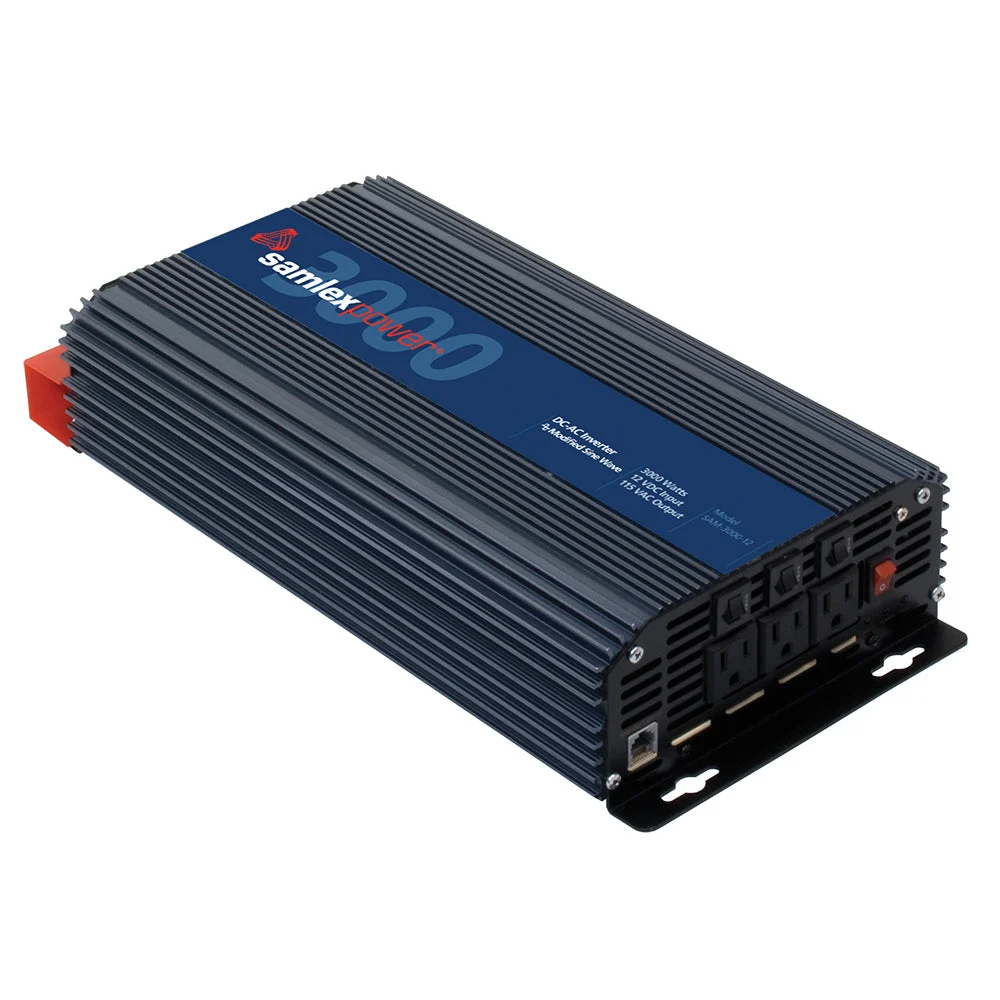

3000W Modified Sine Wave Inverter – 12V

SAM Series low interference, high efficiency modified sine wave DC-AC inverters convert 12 VDC to 115 VAC at an output frequency of 60 Hz.

ETL safety listed.

Features:

• Compact design
• Load controlled cooling fan
• Low battery input alarm
• Universal protection circuit: thermal, battery, overload, short circuit, earth fault
• Soft start technology
• Cool surface technology
• Low interference technology

Specifications:

• Input: 12 VDC
• Output: 115 VAC
• Watts: 3000 Watts
• Surge: 6000 Watts
• Outlets: 3
• Remote Control: SAM-RC
• Weight: 11.8 (lbs)
• Weight: 5.5 (kg)
• Dimensions: 7.95 x 16.53 x 3.3 (in)
• Dimensions: 202 x 420 x 84 (mm)
• Safety: ETL
• Warranty: 2 Year Limited

Applications:

• Solar power systems
• Emergency backup power
• Service vehicles
• Mobile offices
• Recreational vehicles, camping
• Telecommunications
• Field work/construction sites
• Home electronics: TV, DVD and video games
• Tools and appliances

“Samlex 12V Modified Sine Wave Inverter – A Compact Set With an Intelligent Control Design The Samlex 3000W modified sine wave inverter converts 12V DC from the source to 115V AC and this process occurs in 2 stages. In the first stage, high frequency switching and pulse width modulation technique is used which converts 12V DC to 160V DC. In the second stage, 160V is converted to 115V.”
SKU: NVN-67158
MPN: SAM-3000-12
UPC: 622988078361
