Description

Schaefer Marine Schaefer Spring Loaded/Lined Slide/Aluminum f/1″ T-Track is organized for deck hardware & rigging shoppers who need a clear, professional marine parts buying experience.

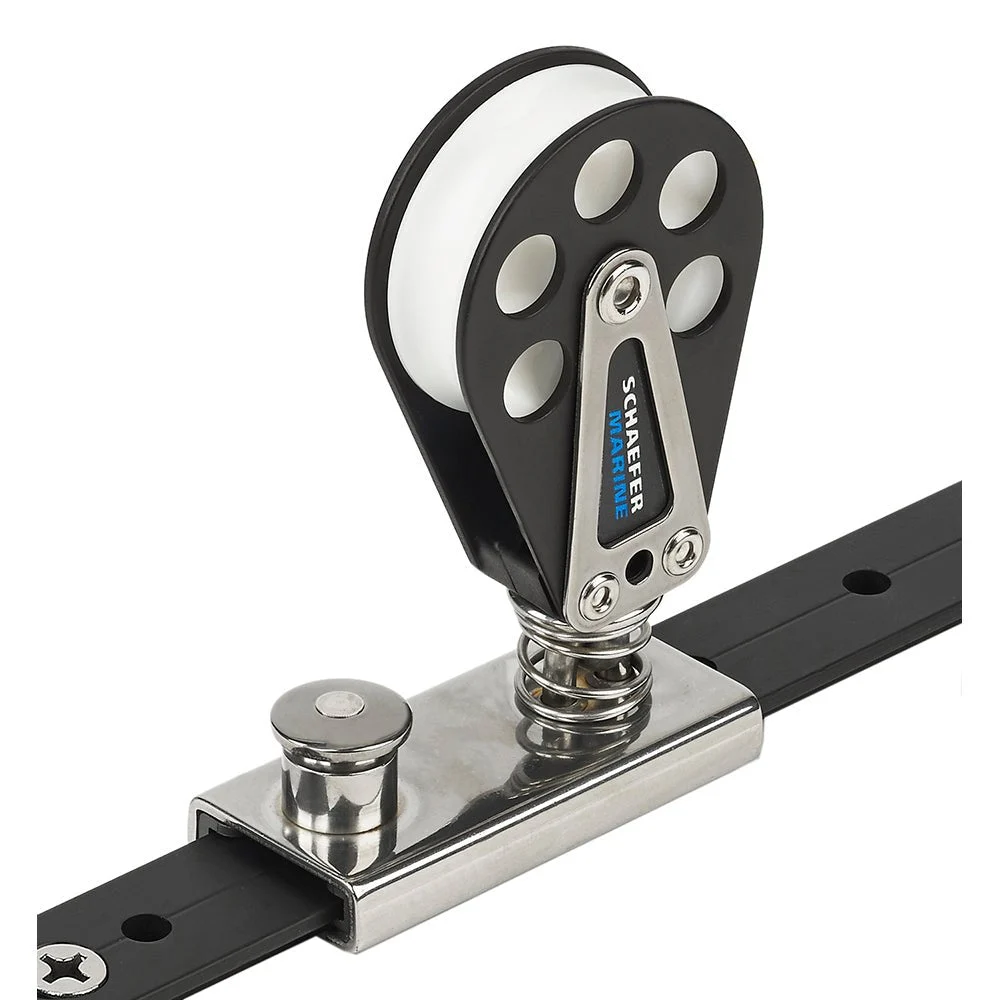

Spring Loaded/Lined Slide/Aluminum for 1″ T-Track Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. Specifications: Track Size 1″ x 1/8″ (25 mm x 3 mm) Max. Boat Length- 27′ (8m) Max. Boat Weight- 5000 lbs. (2270 kgs) Sail Area- 315 sq. ft (29 m2) Sheave Diameter 2″ (51 mm) Max Line 7/16″ (11 mm) Length 3″ (76 mm) Width 1-1/4″ (31 mm) Height 4-5/32″ (105 mm) Bearing Height 2-7/32″ (56 mm) SWL 1750 lbs. (795 kg) Weight 7.0 oz. (198 g)

Fitment & Product Details

• Brand / Manufacturer: Schaefer Marine
• Material: stainless steel, aluminum

• Search-optimized by brand, system, part type, and fitment cues.
• Verify compatibility with your original part number, engine model, and application before ordering.
• Built for boat owners, e-commerce shoppers, and professional marine service teams.
